APPLICATION SCENARIOS
Residential: Gas meter to stoves, water heaters, boilers
Commercial: Gas meter to restaurant cooking equipment
Renovations: Replaces old rubber hoses
Outdoor: For grills and patio heaters
Standards
Mandatory: ICONTEC Certification
Key specs: ICONTEC 1560, ICONTEC 2079
Regulation: Resolution 001440 (Ministry of Mines and Energy)
Quality: IS0 9001

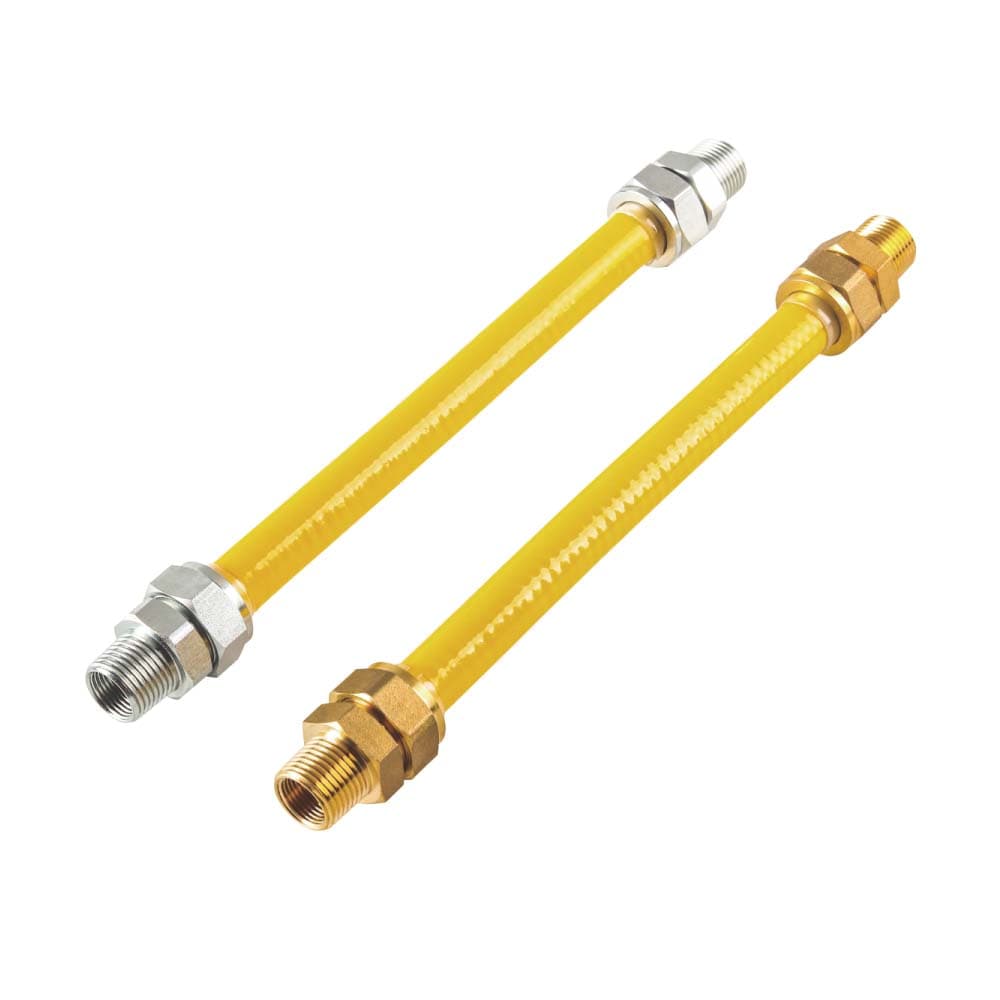

ARGENTINA GAS CORRUGATED HOSE
Compliance Standards:
ENARGAS NAG-E210, IRAM 15600 Series, IRAM 2502
Visual & Dimension:No defects, ovality <3% after bending
Leakage Test:1.5x working pressure, 3mins,leak ≤0.07 L/h
Bending Test:180° bends, 25 cycles, no rupture/leak
Hydrostatic Test:>4x working pressure, no burst/deformation
Temperature Cycle:-20°C~+120°C, no leakage/rupture
Aging Test: UV/corrosion resistance, intact coating
Fitting Torque: NPT 1/2"/3/4", specified torque, no loosening
Flow Loss: Inlet 18 mbar, max loss 1.3 mbar
| Code | DN | Length mm | Fittings |
| KL220120 | 12 | 300 | M26×1.5-1/2"×3/8" |
| KL220121 | 12 | 450 | M26×1.5-1/2"×3/8" |
| KL220122 | 12 | 600 | M26×1.5-1/2"×3/8" |
| KL220123 | 12 | 900 | M26×1.5-1/2"×3/8" |
| KL220124 | 12 | 1200 | M26×1.5-1/2"×3/8" |
| KL220125 | 12 | 1500 | M26×1.5-1/2"×3/8" |
| Code | DN | Length mm | Fittings |
| KL 220126 | 12 | 300 | M26×1.5-1/2"×3/8" |
| KL 220127 | 12 | 450 | M26×1.5-1/2"×3/8" |
| KL 220128 | 12 | 600 | M26×1.5-1/2"×3/8" |
| KL 220129 | 12 | 900 | M26×1.5-1/2"×3/8" |
| KL 220130 | 12 | 1200 | M26×1.5-1/2"×3/8" |
| KL 220131 | 12 | 1500 | M26×1.5-1/2"×3/8" |
