| Parameters | Specifications |

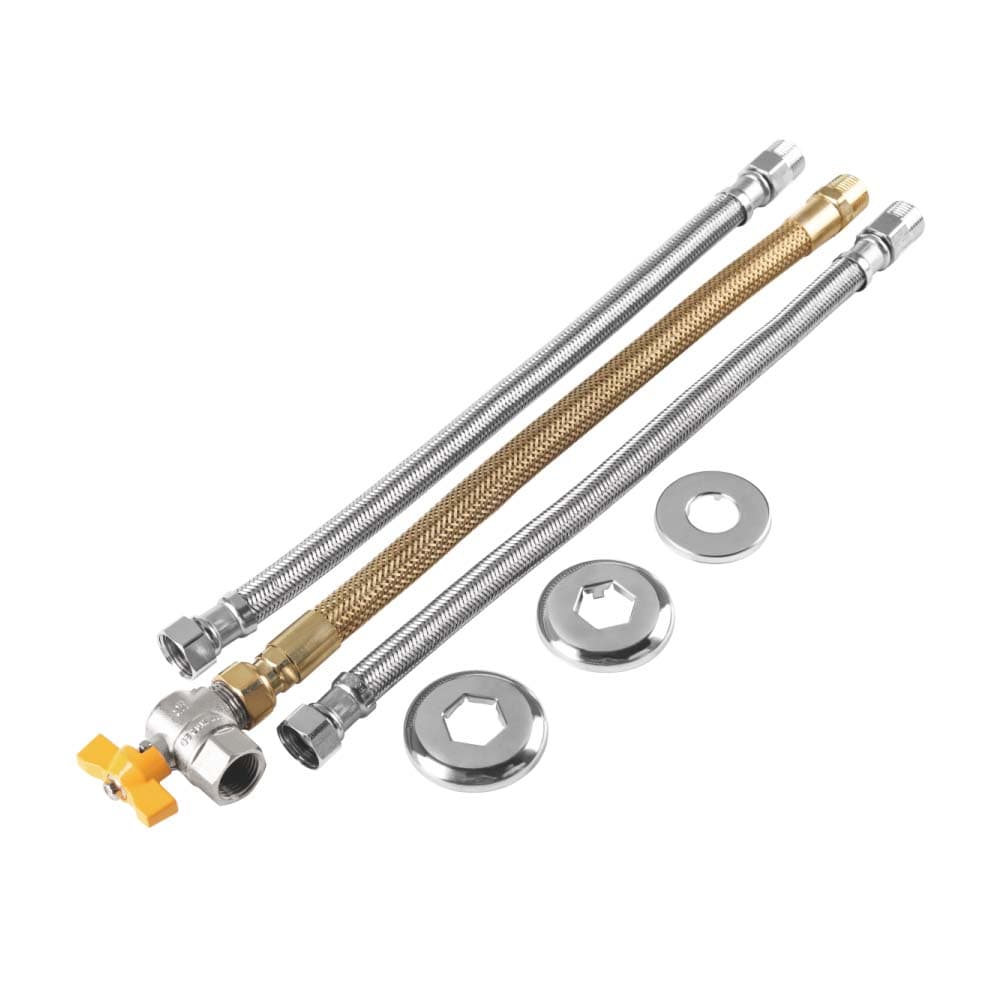

| Product Structure | Inner:SUS Corrugated Pipe; Outer: Stainless steel wire braided (Polybutylene Terephthalate) Coating; Fittings: Brass/Nickel-Plated Brass |
| Working Pressure | 0.1-0.6 MPa |
| Burst Pressure | >3.0 MPa |
| Applicable Medium | Natural Gas, Liquefied Petroleum Gas (LPG), Artificial Gas |
| Working Temperature | -30°C~+120°C |
| Fitting Specification | 1/2" BSP (Mainstream in Brazil), 3/4" BSP optional |
| Certification | INMETRO (Mandatory in Brazil), CE |
| Aging Resistance Life | >10 Years |
| Minimum Bending Radius | >4 x Pipe Diameter |
| Code | DN | Length cm | Size |
| KL220019 | 12 | 30-60 | M1/2"-F1/2"WATER |
| KL220020 | 12 | 30-60 | M1/2"-F1-1/2"WATER |
| KL220021 | 15 | 30-60 | M1/2"-F1/2"GAS VALVE |
| Parameters | Specifications |
| Product Structure | Inner: Brass Corrugated Pipe; Outer: Stainless steel wire braided (Polybutylene Terephthalate) Coating; Fittings: Brass/Nickel-Plated Brass |
| Working Pressure | 0.1-0.6 MPa |
| Burst Pressure | >3.0 MPa |
| Applicable Medium | Natural Gas, Liquefied Petroleum Gas (LPG), Artificial Gas |
| Working Temperature | -30°C~+120°C |
| Fitting Specification | 1/2" BSP (Mainstream in Brazil), 3/4" BSP optional |
| Certification | INMETRO (Mandatory in Brazil), CE |
| Aging Resistance Life | >10 Years |
| Minimum Bending Radius | >4 x Pipe Diameter |
| Code | DN | Length cm | Size |
| KL220022 | 12 | 30-60 | M1/2"-F1/2"WATER |
| KL220023 | 12 | 30-60 | M1/2"-F1-1/2"WATER |
| KL220024 | 15 | 30-60 | M1/2"-F1/2"GAS VALVE |
